IBM 2770 Suite

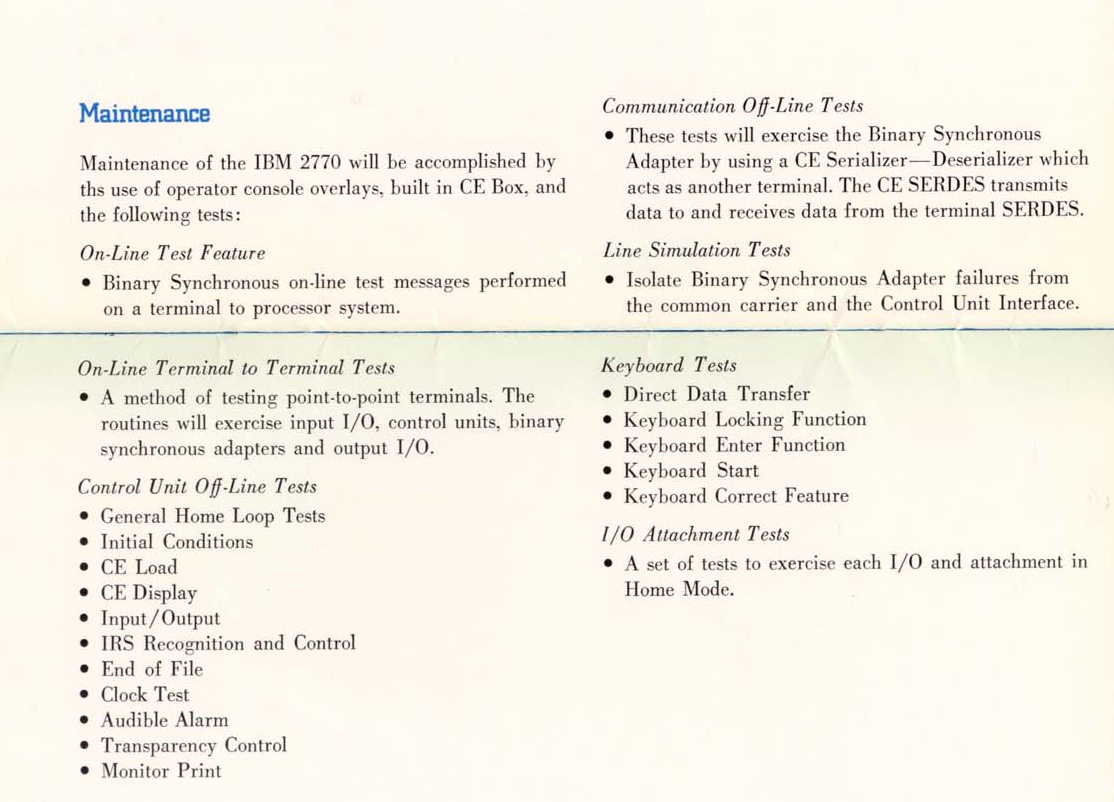

The IBM 2770 Data Communication System was introduced in 1969 as an integrated suite of products. Click next and previous buttons on the image to peruse the manual.

  • 2772 Network maximum speed: 2400 bits/second.

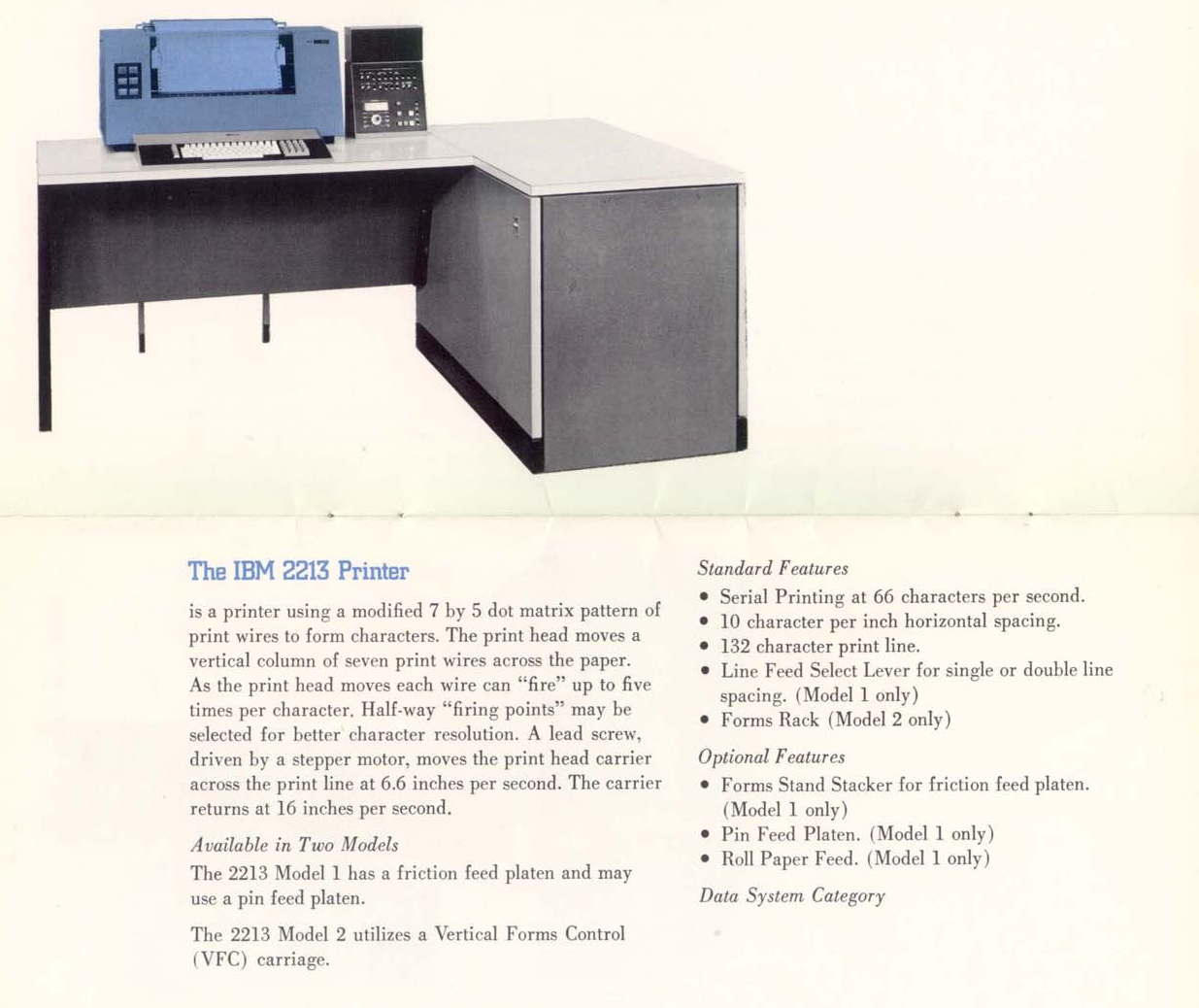

  • 2213 Printer: 7x5 dot matrix, 132 cols at 2 seconds per line
  • 2502 Card Reader: 150 or 300 cards per minute
  • 2265 Monitor: 14" CRT - 15 row / 64 col or 12 row / 80 col
  • 545 Output Card Punch: up to 20 columns per second
  • 1017 Paper Tape Reader: paper and laminated polyester tape
